Scotts® Elite Spreader Assembly Guide

• Prep: Open the box, remove the spreader and hardware, and check that all components are accounted for.
• Mount Wheels: Slide a wheel onto each end of the axle. On the left side, verify that the axle pin (b) aligns with the wheel slot.
• Add Washers: Place one washer (c) onto each end of the axle.
• Insert Cotter Pins: Secure the assembly by inserting a cotter pin (d) through the hole at each axle end. Bend the cotter pin legs (e) firmly around the axle to lock the wheels in place.
• Apply Hubcaps: Snap the hubcaps (f) onto the tires.

Remember to recycle the packaging.

Download Label Here

Maintenance and Storage Guidelines

• Protect Waterways: Never allow leftover product or rinse water to enter storm drains or sewers
• Empty Spreader: Always remove unused material from the spreader immediately after use. Return it to the original package and seal tightly for storage.
• Cleanup Spills: If any product spills onto hard surfaces (driveways, sidewalks, roads), sweep it immediately back onto the lawn. This prevents runoff into storm drains.
• Cleaning: Thoroughly wash the entire spreader, including the underside, after each use. Allow it to dry completely before putting it away.
• Lubrication: Periodically spray a lubricant on all rotating parts to maintain smooth operation and extend the life of your spreader.

Calibration Information

*This spreader cannot be calibrated and should not need to be.

To check if the spreader is properly calibrated follow the steps below:

1. You'll need a 1/4 inch drill bit.
2. Set the spreader to 3.
3. With the control lever/trigger depressed the drill bit should fit snugly in the lower-left corner of the opening.

Use with Other Products:

Use this spreader to seed, weed, feed and melt!

Replacement parts for the Scotts® Elite Spreader:

• Axle Kit (Axle, Agitator, Cotter Pins)
• Frame Leg Cap
• Hardware Kit (Hubcaps, Cotter Pins, washers
• Wheels
• Agitators
• Gearboxes

*Replacement parts are available upon request, subject to stock availability and shipping destination.

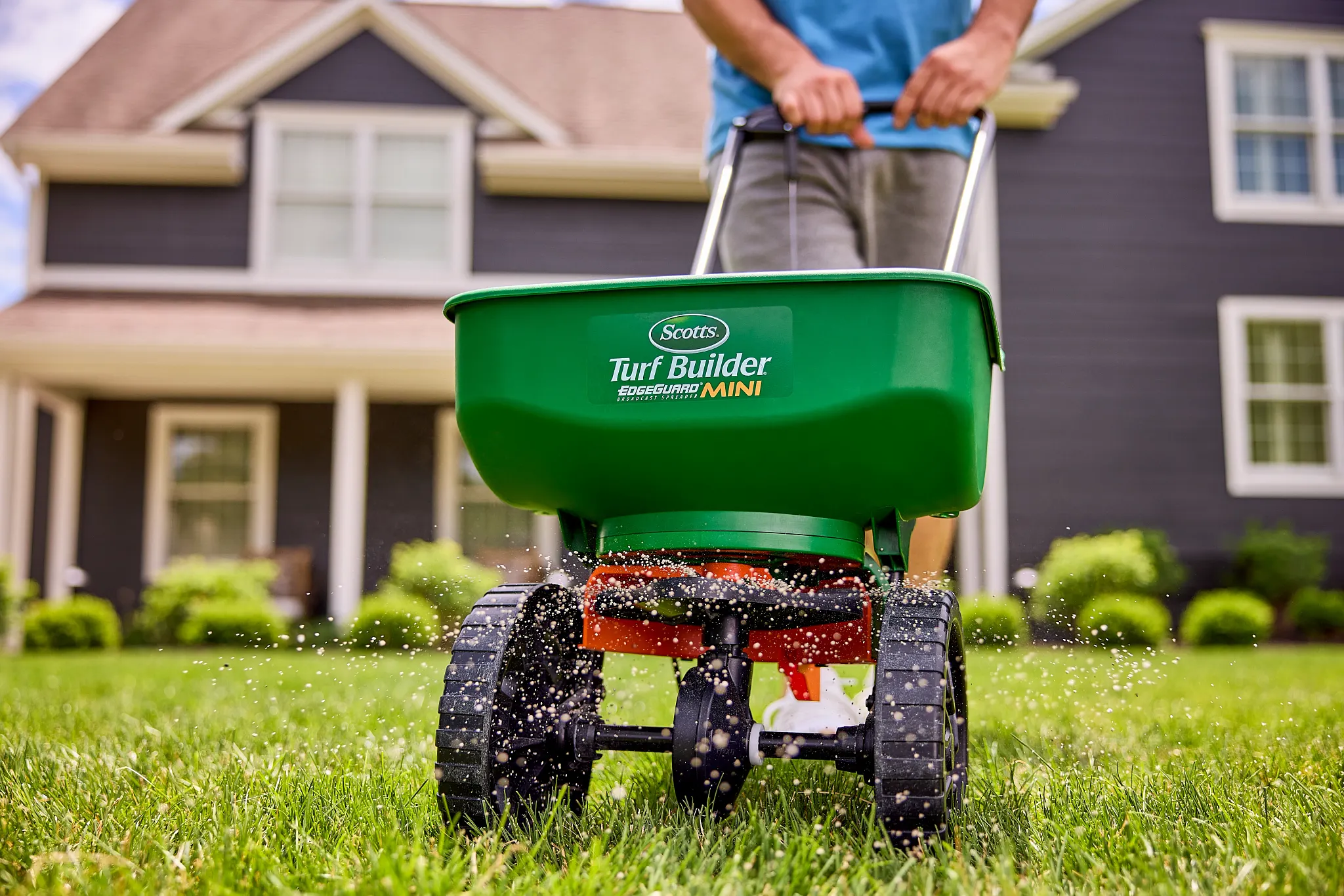

Assembling and Using Your Scotts® EdgeGuard® Mini Spreader

• Assembly: Raise the handle to the upright position and tighten the wing nuts by hand.
• Prep: Fill the hopper over your driveway and immediately clean up any spills.

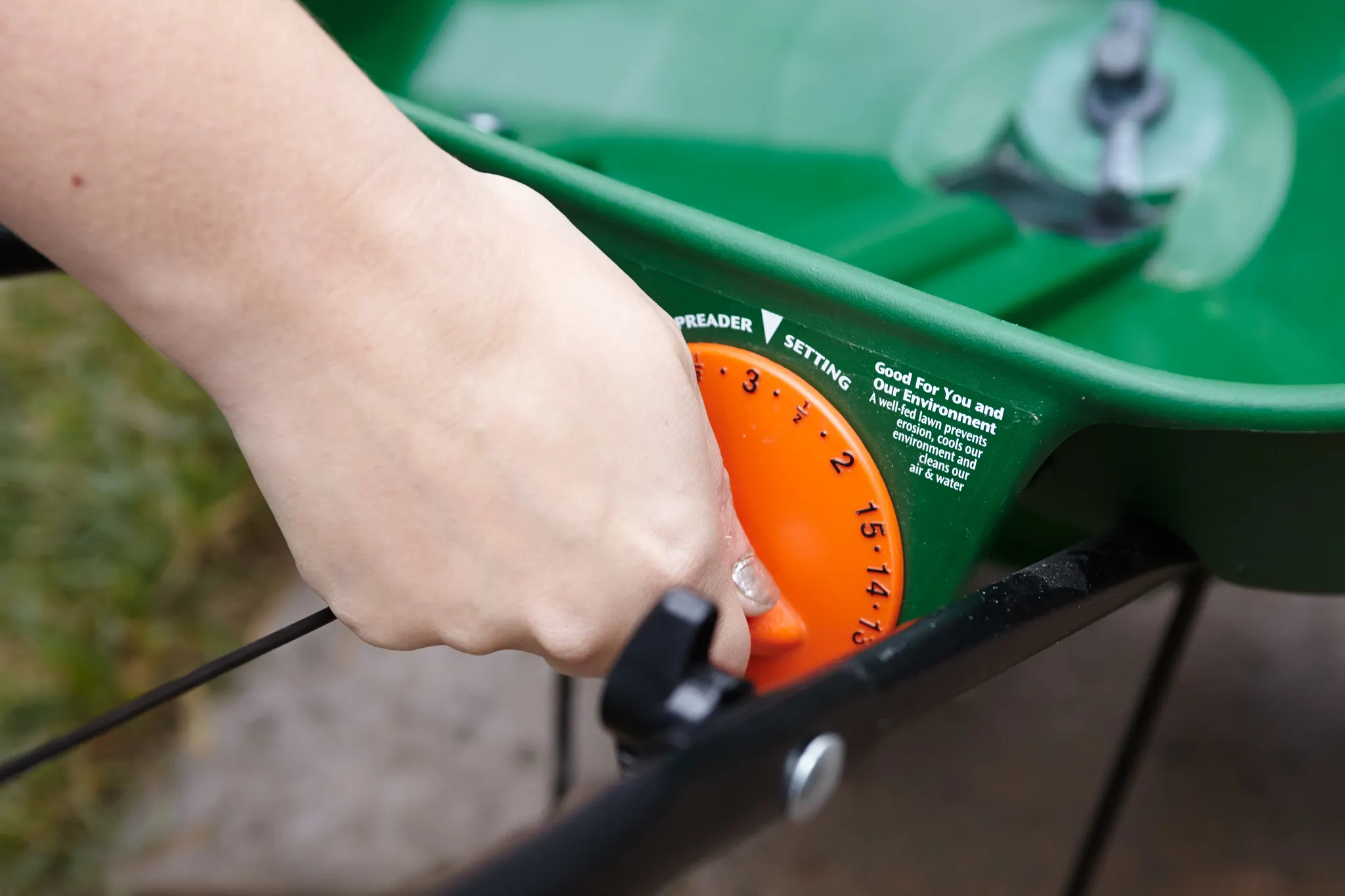

• Set Rate: Turn the dial to the correct setting listed on your Scotts® product bag.
• EdgeGuard®: Slide the lever to activate the EdgeGuard® Landscape Protection System to block the spread pattern on the right side.
• Application: Begin walking briskly (4 ft./s) and squeeze the trigger to release the product.
• Turns: Release the trigger when making turns.
• Spacing: Make each spreading pass 5 ft. from the previous path for uniform coverage.

Download Label Here

Maintenance and Storage

• To protect your equipment and surrounding areas:
• Filling & Cleanup: Always fill the spreader over a driveway or hard surface, and immediately clean up any spilled product.
• Cleaning & Drying: Thoroughly clean the entire spreader after each use. Ensure it is completely dry before storing it in a shed or garage.

Calibration Check

This spreader cannot and should not need to be calibrated. To quickly verify its factory setting, you will need a 1/4 inch drill bit. Set the spreader dial to 3. When the control lever/trigger is depressed, the drill bit should fit snugly into the lower-left corner of the opening.

Always ensure you follow the watering instructions provided on the packaging of the product you are applying.

Replacement parts for the Scotts® Turf Builder® EdgeGuard® Mini Broadcast:

• Rotor Plate
• Agitator
• Thumbnut Kits
• Gearbox

*Replacement parts are available upon request, subject to stock availability and shipping destination.

Quick Application Guide

• Prep: Fill the spreader over your driveway, immediately cleaning up any spills.
• Set Rate: Turn the dial to the correct product setting.
• EdgeGuard®: Slide the lever to activate EdgeGuard® if you need to protect non-lawn areas.
• Apply: Start walking briskly (4 ft./s) and squeeze the trigger to release the product.
• Turns & Spacing: Release the trigger when turning, and keep each pass 5 ft. from the previous path.

Download Label Here

Maintenance and Storage: The spreader features a fold-down handle for easy storage in a dry place. Before storing, be sure to clean out any leftover product.

Calibration Check: This spreader does not require calibration. To verify the factory setting, set the dial to 3. When the trigger is depressed, a 1/4 inch drill bit should fit snugly in the lower-left corner of the opening.

To ensure proper application and results:

Consult the Product Label: Always follow the "Directions for Use" and watering guidelines printed on the package.

Protect Your Edges: Engage the EdgeGuard® to accurately control the spread. This feature blocks the right side of the pattern, keeping the product off sidewalks, driveways, or other unintended areas.

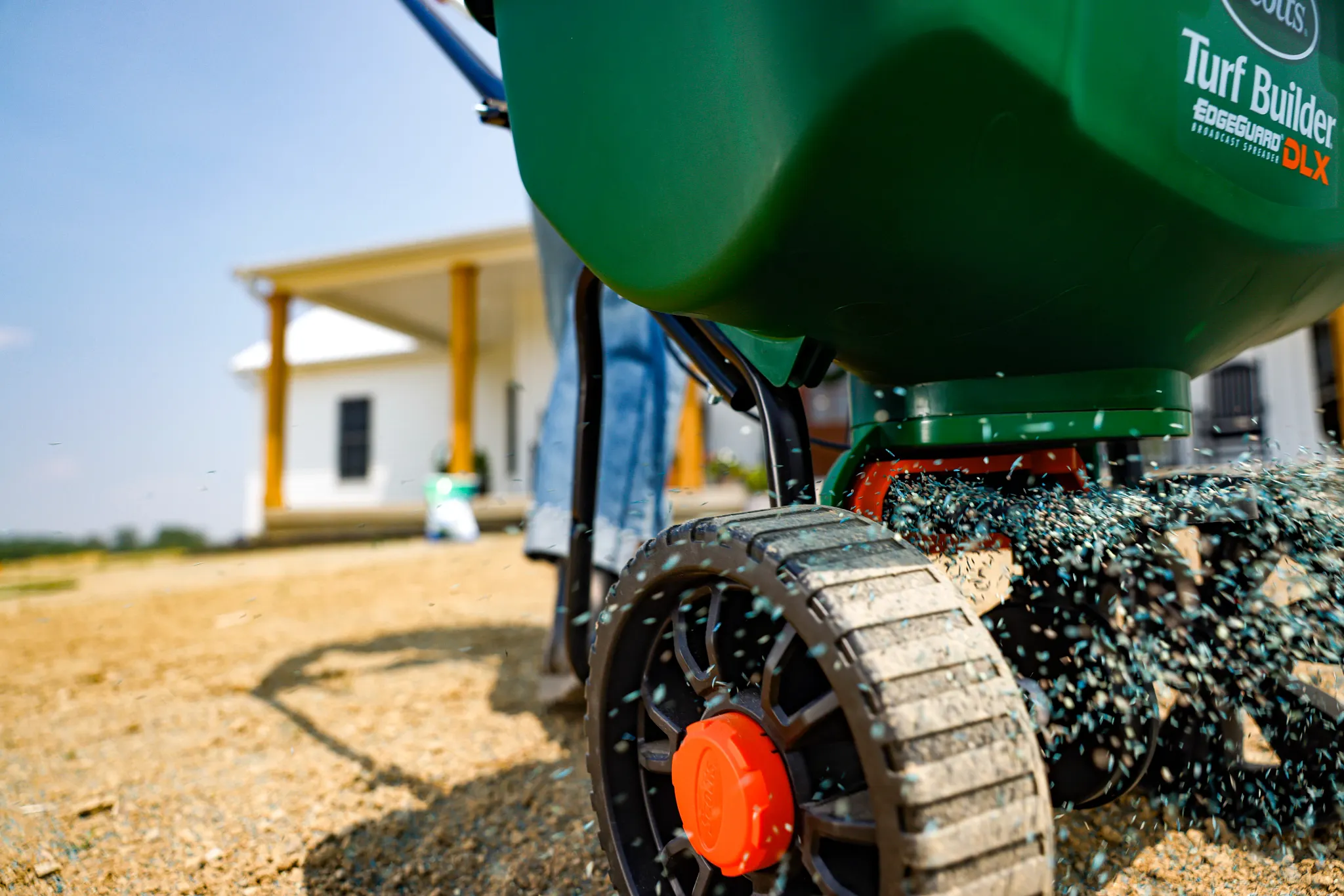

Replacement parts for the Scotts® Turf Builder® EdgeGuard® DLX Broadcast Spreader:

• Gearbox
• Wheel & Hubcap
• Axle
• Agitator
• Hardware Kits (4 nuts/4 bolts)

*Replacement parts are available upon request, subject to stock availability and shipping destination.

To use the spreader, set the rate control dial based on the Scotts® product label, fill the hopper (which holds up to 15,000 sq. ft. of product), and begin spreading. Engage EdgeGuard™ to block the right-side pattern, ensuring the product stays off non-lawn areas.

Download Label Here

Cleaning & Maintenance

Keep tire pressure between 20 and 30 psi. Never leave product in the spreader; pour unused material back into its package. If product lands on hard surfaces, sweep it back onto the lawn to prevent runoff into storm drains or sewers. After use, wash the spreader thoroughly, allow it to dry before storing, and periodically spray lubricant on all rotating parts to ensure smooth operation. Do not allow product or rinse water to enter storm drains or sewers.

Storage

Store the spreader in a shed or garage. Do not store it outside.

Calibration Check

This spreader is pre-calibrated and should not need adjustment. To check the calibration, set the spreader to 3 and depress the control lever/trigger; a 1/4 inch drill bit should fit snugly in the lower-left corner of the opening.

Always follow the product label for application and watering directions. Use EdgeGuard® to block the right side of the pattern and keep the product off non-target areas.

Replacement parts for Scotts® Turf Builder Edgeguard MAX Broadcast Spreader:

• Gearbox
• Rotor Plate
• Pneumatic Tires
• Handle Kit
• Axle Kit

*Replacement parts are available upon request, subject to stock availability and shipping destination.

Fully assembled, pre-calibrated, and ready for immediate use.

The spreader features a heavy-duty frame for excellent stability and a 22-inch spread pattern for maximum coverage and accuracy. Its large capacity hopper holds up to 15,000 sq. ft. of Scotts® products, including grass seed, fertilizer, salt, and ice melt.

Replacement parts for the Scotts® Turf Builder® Classic® Drop Spreader:

• Frame Kit
• Handle Kit
• Hubcaps
• Thumbnut Kit
• Wheel Kit
• Micrometer Kit

*Replacement parts are available upon request, subject to stock availability and shipping destination.

Before starting, know your lawn size and read the product label to prevent over-application. Fill the 1,500 sq. ft. capacity hopper over pavement to contain any spills. Set the orange dial to the correct product setting. To apply, walk at a steady pace while pulling the trigger and turning the crank clockwise.

Before storing, remove any leftover product and ensure the unit is kept in a dry place. Note that the spreader comes pre-calibrated from the manufacturer and should not require any further calibration.

This spreader is perfect for small yards and can be used year-round to apply a variety of products, including fertilizer, seed, weed control, and ice melt.

No replacement parts available for this Spreader

Assembly (Battery Installation)

The Scotts Wizz includes four replaceable AA batteries. A small Phillips screwdriver is required to remove the screw securing the battery cover. Replace the old batteries with new AA batteries, ensuring correct positioning according to the diagram inside the compartment. You may use alkaline, carbon-zinc, or rechargeable batteries, but do not mix battery types. Securely replace the battery cover and screw.

Getting Started & Application

Always read and follow the product label directions before use. The spreader holds enough product to cover up to 2,500 sq. ft.

1. Set: Turn the orange dial to the correct setting listed on the product label.
2. Perimeter Pass: Engage the EdgeGuard to protect non-lawn areas and apply a perimeter pass.
3. Spread: Begin walking at a steady pace (about 4 ft. per second). Hold the spreader comfortably and pull the trigger to start the application.
4. Internal Passes: Make parallel passes, keeping them 5 feet apart to ensure even coverage.

Tip for Salt/Ice Melt: When spreading ice melt or rock salt, point the Wizz slightly downward to prevent product buildup from clogging behind the rotor plate.

Before storing, remove any leftover product and keep the spreader in a dry location. If the spreader will not be used for an extended period, remove the batteries. Note that the unit comes pre-calibrated from the manufacturer and should not require manual adjustment.

The battery-powered spreader (requires 4 AA batteries) features EdgeGuard® technology to ensure accurate application by controlling the 5 ft. broadcast and keeping product off non-lawn areas. With one-touch control and 23 precision settings, the unit holds enough product to cover up to 2,500 sq. ft.

No replacement parts available for this spreader.

If you are using a non-Scotts product or the required setting is unavailable for your Scotts spreader, you must determine the correct setting through testing. To begin, calculate the amount of product needed to cover 1,000 square feet (e.g., divide the bag weight by the total coverage area, then multiply by 1,000 sq. ft.). Place only this calculated amount into the hopper. Start with a very low spreader setting and apply the product only to the 1,000 square foot test area. If you have leftover product, increase the setting; if you run out, decrease the setting.

Note that flow rate depends on the particle size and density of the specific product, and the user assumes all risks associated with adjusting the flow rate.
